LDBSS

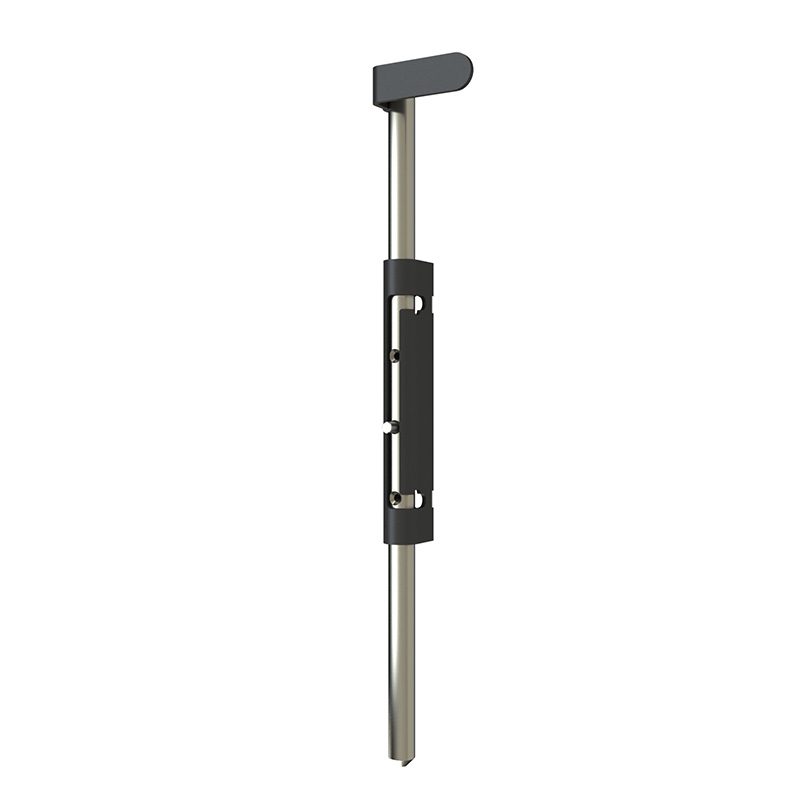

LDBSS – GATEMASTER LOCKING DROPBOLT – Stainless Steel Drop bolt & Powder Coated, Stainless Steel hardware

Share this product

Check availability near you

| In stock

| Out of stock

| Out of stock

N/A

2.200 lbs

SKU: LDBSS Categories: ,

Product Description

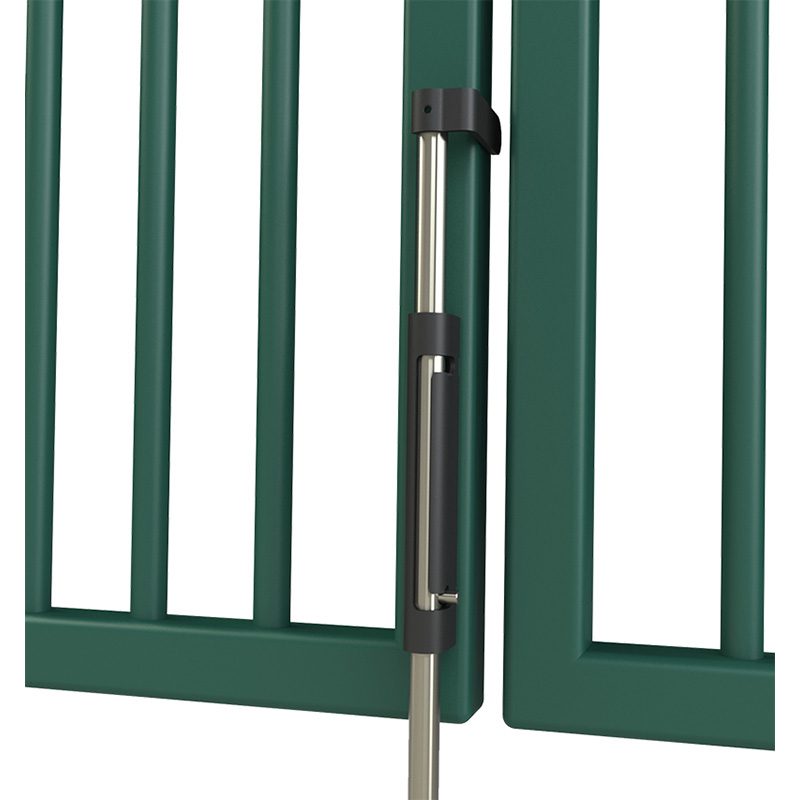

A secure locking Drop bolt, which is easy to fit to the gate with our expanding fasteners. Used on double gates, once the Drop bolt is in the ground, the locking plate is rotated around the edge of
the gate. Once the second gate is closed, the Drop bolt cannot be lifted.

Features:
Robust – Strongly constructed from galvanized steel, also available with a Stainless Steel bolt.
Easy to fit – Needs just two 15mm holes in the gate and fixed with the expanding fasteners provided.
Adaptable – Fits left and right-hand gates.
• Innovative and secure – Once the Drop bolt is lowered and rotated, closing the second gate prevents the Drop bolt from being unlocked.
• 19mm bolt that has 140mm movement.

PRODUCT OPTIONS:

  • LBD – Aluminum Drop bolt & Powder Coated, Stainless Steel
    hardware.
  • LBDSS – Stainless Steel Drop bolt & Powder Coated, Stainless
    Steel hardware.



Installation:

  1. Drill 2 x 15mm holes, 20mm from the leading edge of the gate at 140mm centers, and fix the dropbolt guide to the gate with the 2 expanding fasteners supplied.
  2. Fit the small location pin into the most suitable of the 3 location holes with the smaller screw provided.
  3. Slide the dropbolt into the dropbolt guide, with the location pin facing into the back corner and then twist into position.
  4. Fix the lift plate to the dropbolt in the correct position with the screw provided.

Maintenance:
Lubricate sliding parts when needed.

Download the Locking Dropbolt Spec Sheet.

Additional Information

Weight 2.200 lbs
