SSSM5SHOE10.

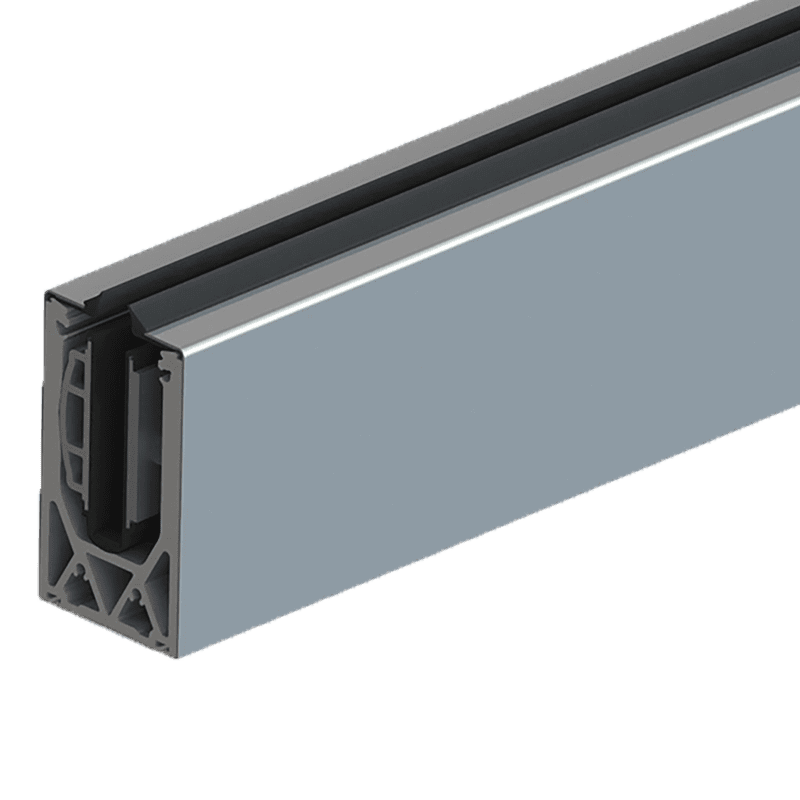

SSSM5SHOE10 – EAC M5 ADJUSTABLE BASE SHOE WITH TILT-LOCK™ TECHNOLOGY, 10FT, (A)(B)(S)

Share this product

Check availability near you

Loading...

| Out of stock

Clear selection
SKU: SSSM5SHOE10. Categories: , , ,

Product Description

Features:

  • Suitable for 19-26.52mm glass for interior and exterior applications. Please choose the Glass Kit that you need from the options above.
  • Glass height 38mm above ground level.
  • Shoe: Alkaline anodized aluminum 6063 T6 with top mount fabrication.
  • Full Cover Cladding: A – Satin Anodized Aluminum, B – Black Anodized Aluminum, S – Satin Stainless Steel.
  • End Caps: Available options to match Cladding.
  • Glass Spacers: For space between glass panels; cut to size.
  • Allows for glass to be tilted 2° backward or forward.
  • All adjustments can be achieved from one side.
  • Faster and easier installation.
  • Perfect alignment every time.
  • Ready-to-install with pre-drilled holes; stabilizing washers included.
  • All concealed components.
  • Fully engineered for the National Building Code of Canada.
  • Patented rotating pressure plate system.
  • Canadian patent application no. 2,962,407.
  • U.S. patent application no. 15/024,903.
  • New Zealand patent no. 700501.
  • European, UK, Australian, Chinese patents pending.

For Drawings and instillation instructions, please contact engineering@euroeac.com

For more technical information on Anodized Aluminum, click here.

NOTE: All base shoes must ship via Transport.
The shipping is not accounted for when you checkout online.
A CSR will contact you to provide the final shipping cost. If you have any questions, please Contact Us to inquire.

NOTE: We do not cut Base Shoes.

Additional Information

Weight lbs
Cladding Options

Non-Cladded, A – Satin Anodized Aluminum, B – Satin Anodized Black, S – Satin Stainless Steel

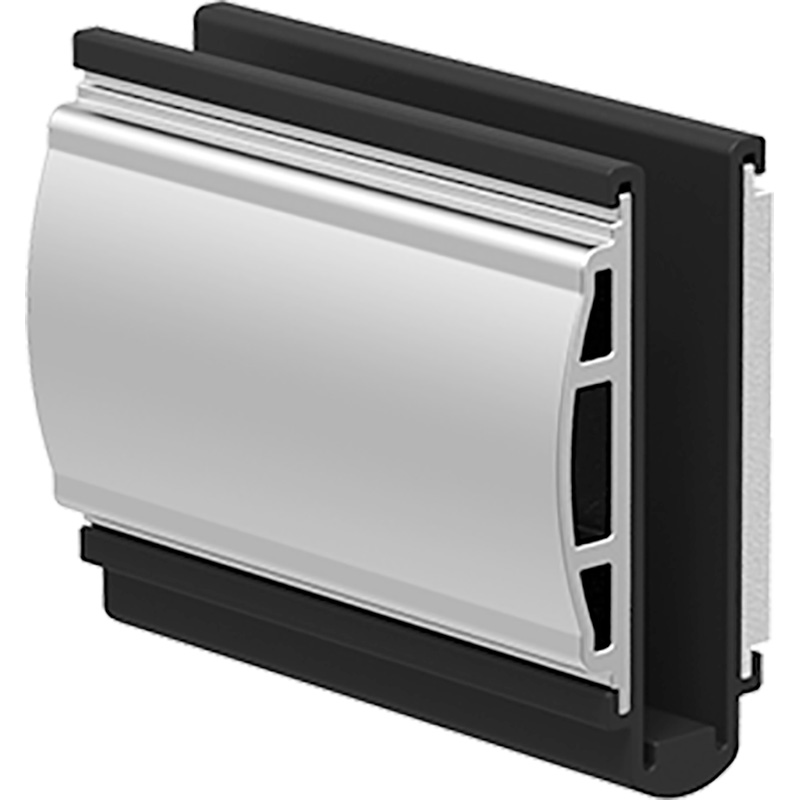

Glass Kit Options

19-21.52mm (SSSM5GLASS1), 24.75mm-26.52mm (SSSM5GLASS2)

Use

Commercial

Glass Thickness

19-21.52mm, 24.76-26.52mm

Application

Exterior, Interior

Series

Tilt-Lock™ M5 Series

Material

Aluminum, Aluminum – Black, Stainless Steel

Engineering is only available for approved customers. Please contact us for further inquiries.
