SSWB0100316S.

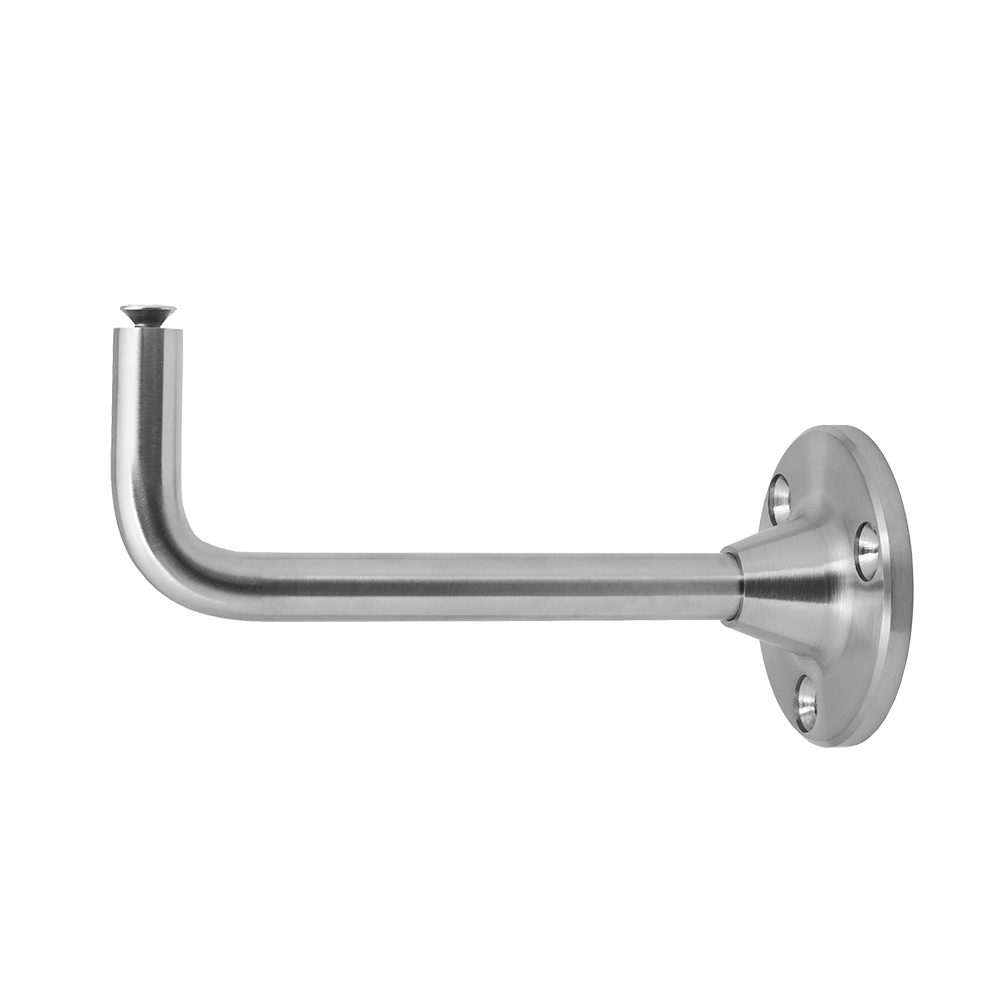

RD6 SERIES – STAINLESS STEEL WALL BRACKET 6″ x 2″ WITH 3-HOLE PLATE ADJUSTABLE LENGTH 4 1/2″ TO 6″

Share this product

Check availability near you

Loading...

| Out of stock

Clear selection
SKU: SSWB0100316S. Category:

Product Description

Features:

  • Adjustable length wall bracket with 3 holes in back plate.
  • SS316 Satin finish.
  • Can be cut to fit size required from 6″ to 4 1/2″.
  • Threading for fasteners is deep within the rod, so there is no issue with cutting it straight.
  • Rod is 14mm in dia. and has M8 threading.
  • Back plate is countersunk to ensure flat surface.
  • 14mm rod held by 68mm diameter robust plate provides heavy duty support for all types of handrails.
  • Collar design of plate conceals any imperfect cutting of rod.
  • Saves time for projects where parts of the wall are offset and need to have a greater distance.

Each wall bracket comes with a Handrail Attachment Plate. Please choose your shape and size option above. If you have any questions, please do not hesitate to Contact Us.

Download our Drawing here.

Additional Information

Weight 0.970 lbs
Series

RD6
