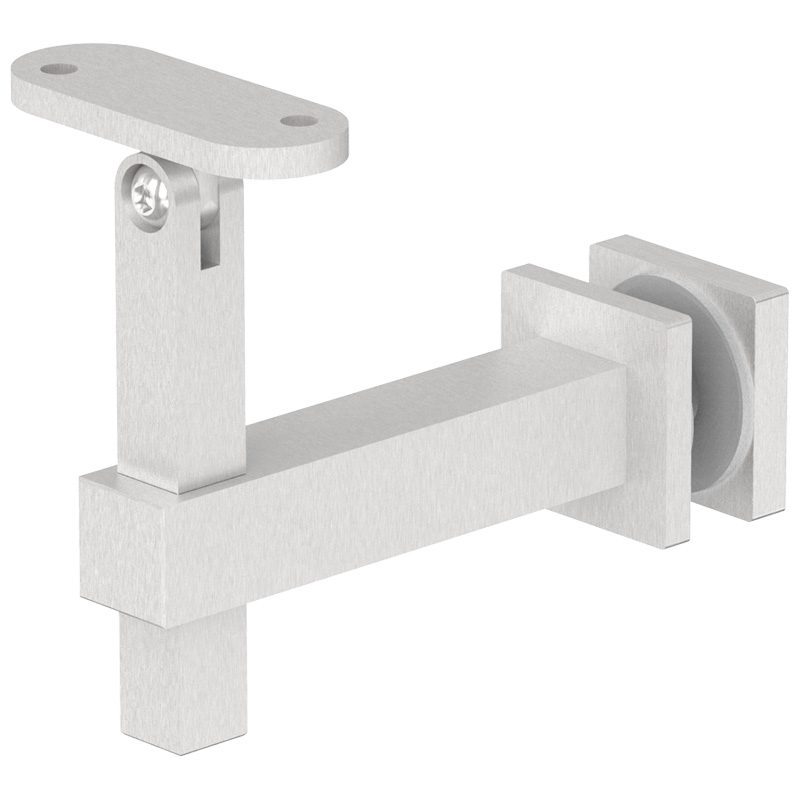

SSZH40216S – SQ4 SERIES STAINLESS STEEL 3 1/2″ ADJUSTABLE SQUARE OFF-THE-GLASS BRACKET WITH 38.1mm SQUARE BACK

Share this product

Check availability near you

| In stock

| In stock

| Out of stock

N/A

1.536 lbs

SKU: SSZH40216S Category:

Product Description

The dimension 93mm (3 21/32″) shows the length from the center of the bracket to the square back plate.

This design has an internal circle, which makes mounting to glass easier.

Features:

  • Back plates on bracket are 38.1mm (1 1/2″) and match the square standoffs diameter.
  • Height adjustable; swivel for stair applications.
  • SS316 stainless steel material, satin finish.
  • Available in Flat saddle only.
  • Hole size for glass cut-out is 19mm (3/4″).

Download Drawing.

Additional Information

Weight 1.536 lbs
Application

Off-the-Glass

Material

Stainless Steel

Series

SQ4
