SSJ – EAC T3 SERIES ADJUSTABLE ROUND STANDOFFS WITH TILT-LOCK™ TECHNOLOGY (S),(B),(GB),(MB),(G)

Share this product

Check availability near you

Loading...

| Out of stock

Clear selection

Product Description

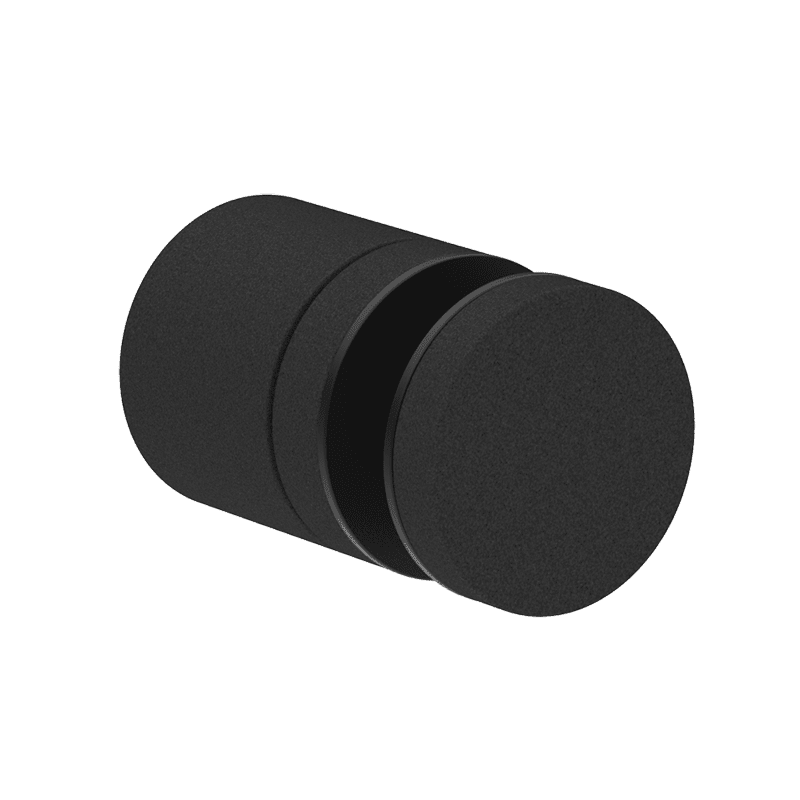

PVD MATTE BLACK FOR INTERIOR USE ONLY!!!

PVD Matte Black items are a CLEARANCE special.

All CLEARANCE items are FINAL SALE!

Tilt-Lock Stainless Steel Adjustable Square Standoffs Installation Video

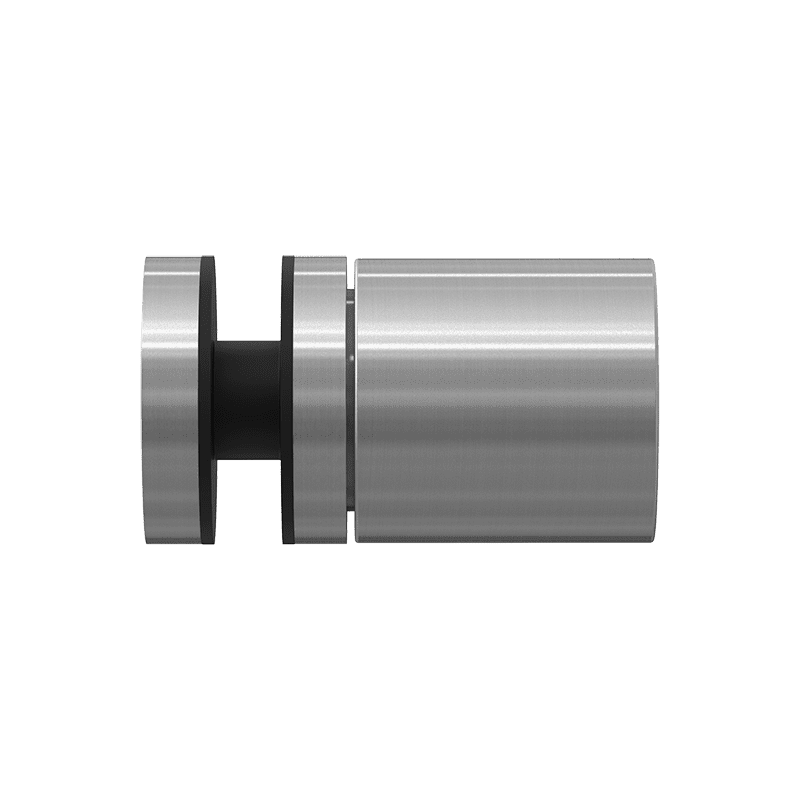

Our Tilt-Lock™ T3 Adjustable Lockable Round Standoff is available in 1 1/2″ and 2″ diameters in various lengths. All sizes are available in

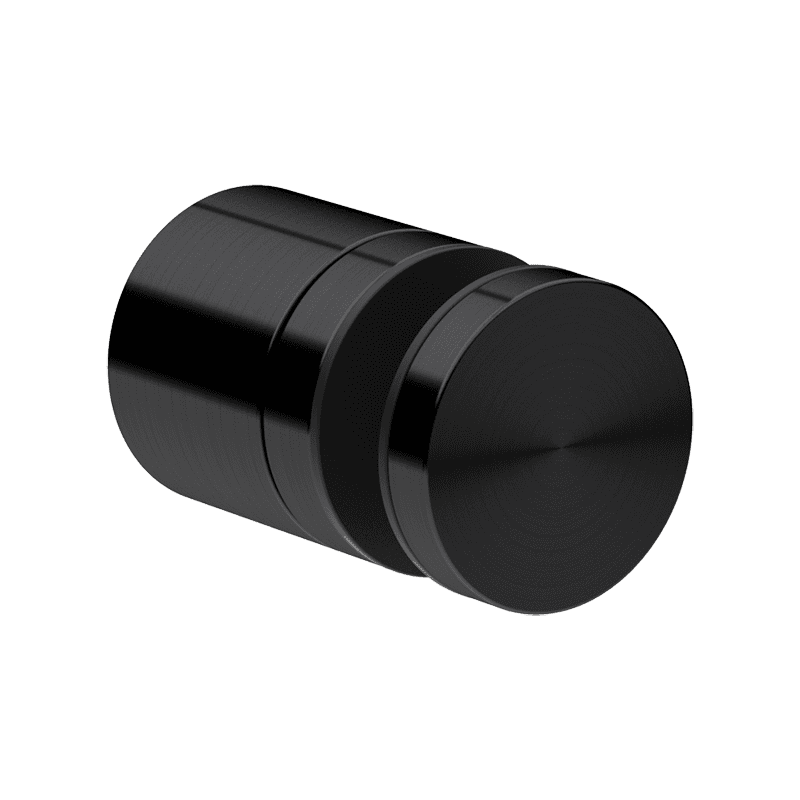

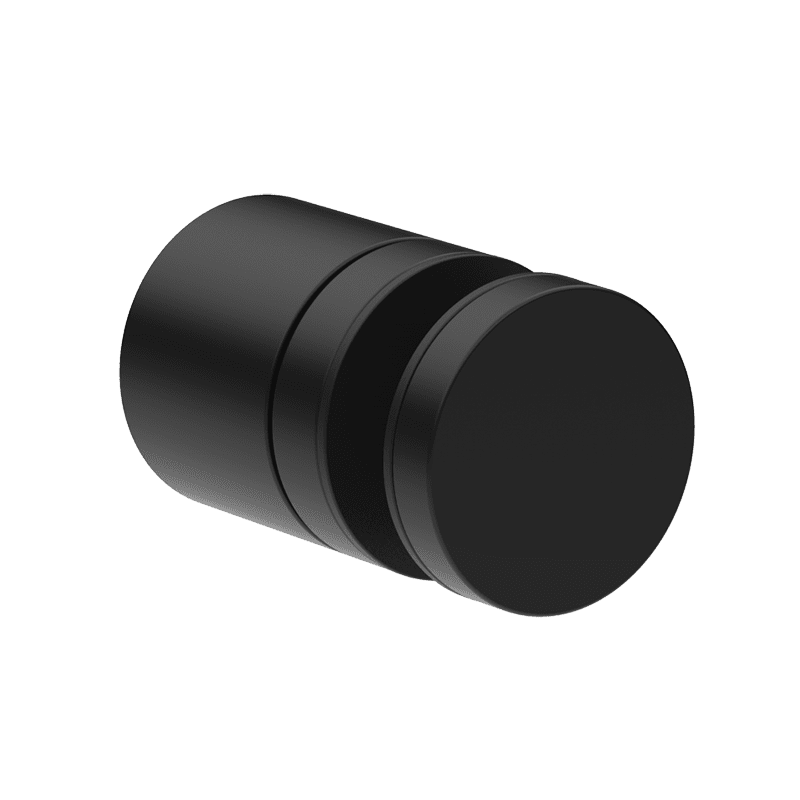

Satin finish, with some available in Powder Coated Black, PVD Graphite Black, Matte Black, and now also Gold.
Our T3 Series Standoffs have been engineered with 3D Adjustability allowing vertical, horizontal, and front to back alignment of glass panels, for easier and
incredibly precise alignment every time. They also feature an Internal Locking Mechanism with a clean design that conceals the threads in the spacer.



Features

      • NEW increased range of glass sizes from 3/8″-7/8″, suitable for commercial and residential projects.
      • Locking System secures standoff in adjusted position, preventing misalignment once cap is assembled or
        disassembled.
      • 3D Adjustability allows +/-3° tilt of glass railings, while the slot hole provides vertical and horizontal adjustment
        allowing for more fastening options.
      • Duplex 2205 ultra marine grade stainless steel, solid material.
      • Designed by EAC and fully engineered for the National Building Code of Canada.
      • Cap and Threaded Rod come as one cast piece for superior strength.
      • Patent pending in Canada and U.S.





1 1/2″ Diameter

  • Accommodates 10-16mm glass
  • Recommended glass hole size 3/4″
  • Recommended Fastner M10 or 3/8″

2″ Diameter

  • Accommodates 12-22mm glass
  • Recommended Glass Hole Size 1″
  • Recommended Fastner m12 or 1/2″



Please refer to our T3 Standoff Flyer for recommended Fastners.

Additional Information

Weight lbs
Finish

MB – Matte Black, G – Gold, B – Black, S – Satin, GB – Graphite Black

Length

1 1/4″, 1 1/2″, 2″

Diameter

1 1/2″, 2″

Shape

Round

Series

T3 Series
