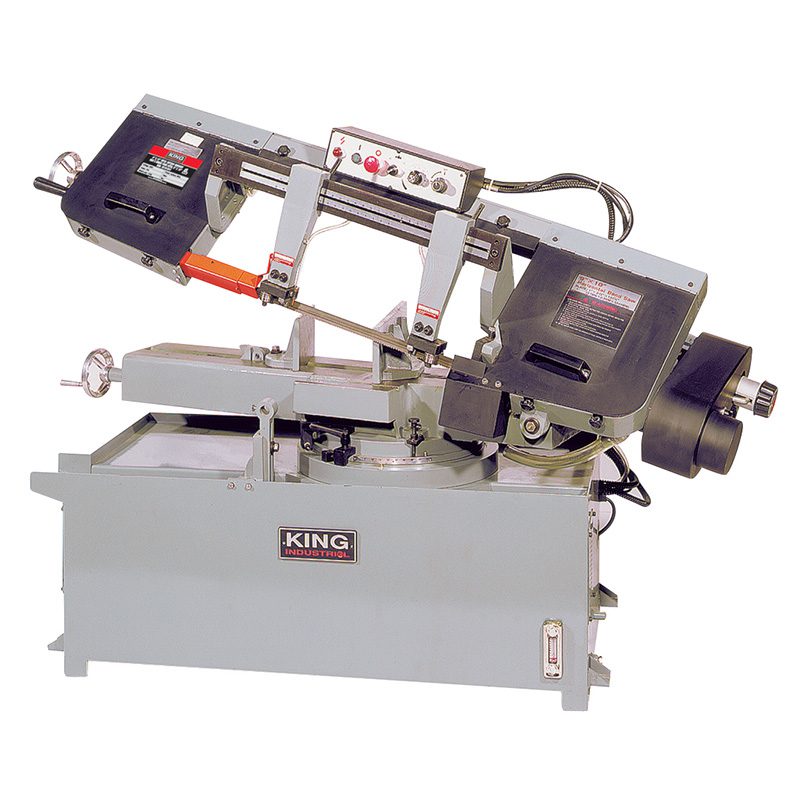

Product Description
Features:
- Powerful 2 HP motor.
- Carbide ball bearing blade guides with rollers.
- Centralized control panel and automatic shut-off.
- Adjustable blade tension adjustment.
- Head swivels 0° to 45° in one direction.
- Quick positioning vise with full adjustable jaws for 0° to 45° angles.
- Coolant system.
Technical data:
Model | KC-918S-V |
Capacity at 90° | ● 9″ / ▬ 9″ x 18″ |
Capacity at 45° | ● 9″ / ▬ 9″ x 11″ |
Blade Size | 131 3/4″ x 1″ x 0.032″ |
Blade Speeds (Variable) | 85-250 FPM |
Motor | 8 Amp. |
Voltage | 220V, 1-Phase, 60 Hz |
Table Height From Floor | 26″ |
Assembled Dimensions (L x W x H) / Weight | 73″ x 32″ x 42″ / 924 lbs. |
Package Dimensions (L x W x H) / Weight | 75 1/2″ x 29 7/8″ x 42″ / 1,067 lbs. |
Available accessories:
Bandsaw Blades |
Coolant |
Please Contact Us at our Machinery Department for further inquiries.
