Product Description

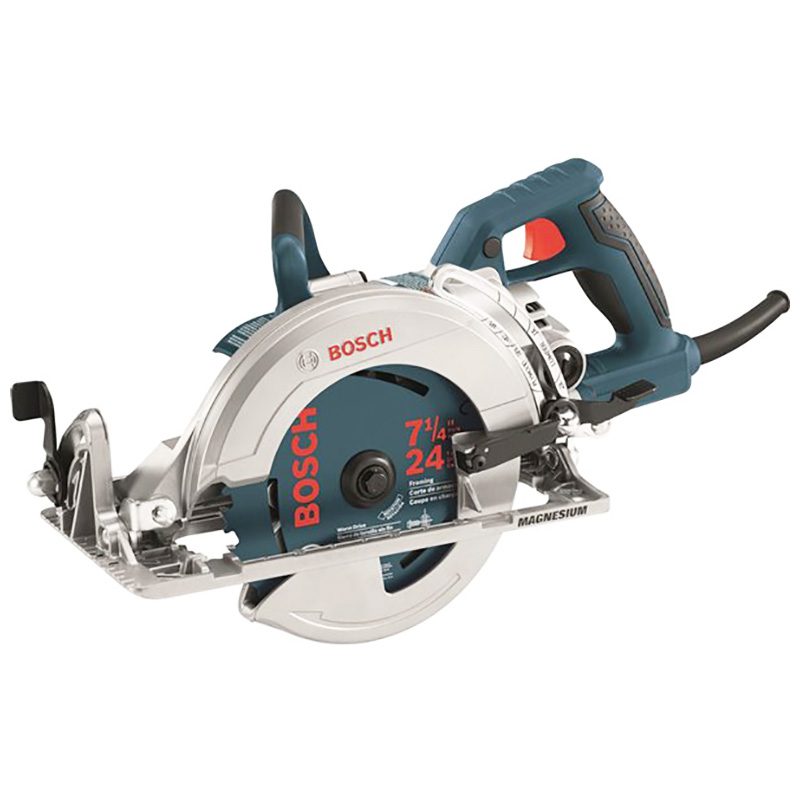

CSW41 Bosch 7 1/4″ 15 Amp Worm Drive Saw Demo Video
The CSW41’s Worm Drive system features an enormous gearing ratio in a compact size. So, if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. Top it all off with a soft-grip handle for comfort, control, and accuracy, and you’ve got one exceptional piece of equipment.
Features:
- Lightweight magnesium motor housing and foot plate construction – lighter weight saw reduces user fatigue for less downtime.
- Built-in saw hook – allows convenient saw storage between cuts.
- Featherboard multi-function wrench – for blade and brush change, lever adjustments, and blade diamond center knockout.
- Accurate depth of cut system allows for quick accurate adjustment.
- Left side blade design for unmatched clarity of cut line.
- Anti-snag lower guard – provides smooth operation for small cut-off pieces.
- Soft-grip handles for comfort and control.
- 53° bevel capacity with positive detent stop at 45°.
- Large adjustment levers for fast, accurate bevel and depth adjustments.
- Easy access spindle lock for easy blade changes.
- Powerful 15 Amp motor provides power for a variety of cutting applications.
Includes:
- CSW41 7 1/4″ Magnesium Worm Drive Saw.
- 1 x Multi-function Blade Wrench.
- 1 x Carbide Blade.
- Built-in Saw Hook.
Specifications:
| Model | CSW41 |
| Amperage | 15.0 |
| Application Type | Wood |
| Arbor Size | Diamond |
| Bevel | 53° |
| Blade Diameter | 7 1/4″ |
| Blade Orientation | Blade Left |
| Blade Size | 7 1/4″ |
| Case Type | No case included |
| Depth of Cut | 2 3/8″ |
| Dust Blower | No |
| Dust Collection | No |
| Electric Motor Brake | No |
| Max. Bevel Capacity (°) | 53 |
| Max. Depth of Cut at 45° | 1 15/16″ |
| Max. Depth of Cut at 50° | 1 13/16″ |
| Max. Depth of Cut at 90° | 2 3/8″ |
| No Load RPM | 5,300 |
| Rating | 120V |
| Saw Type | Worm Drive |
| Voltage | 120V |
| Length | 20 3/4″ |
| Height | 9″ |
| Weight | 12.3 lbs |
Please Contact Us at our Machinery Department for further inquiries.
