Product Description
Compound Miter Saws with Laser Guide System Demo Video
Features:
- Powerful 15 Amp., 4,000 RPM belt drive motor for enhanced motor to arbor power transfer.
- Side trigger safety buttons prevent accidental starts.

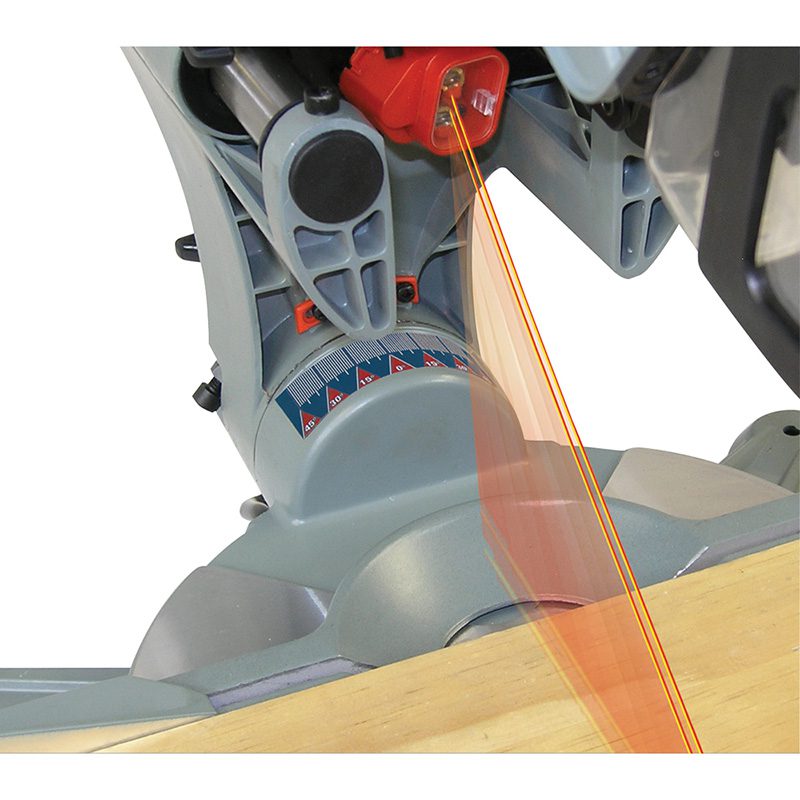

- Twin laser guide system indicates the cut line on both sides of the blade kerf for reliable cuts every time.
- Dual compound cuts (miter and bevel) up to 45⁰ right and left.
- Sturdy aluminum die cast construction.
- Rotating table has 9 positive stops at 0⁰, 15⁰, 22.5⁰, 30⁰, and 45⁰ right and left.
- Bevel positive stops at 90⁰ and 45⁰ right and left.
- Adjustable sliding fence extensions for extra support.

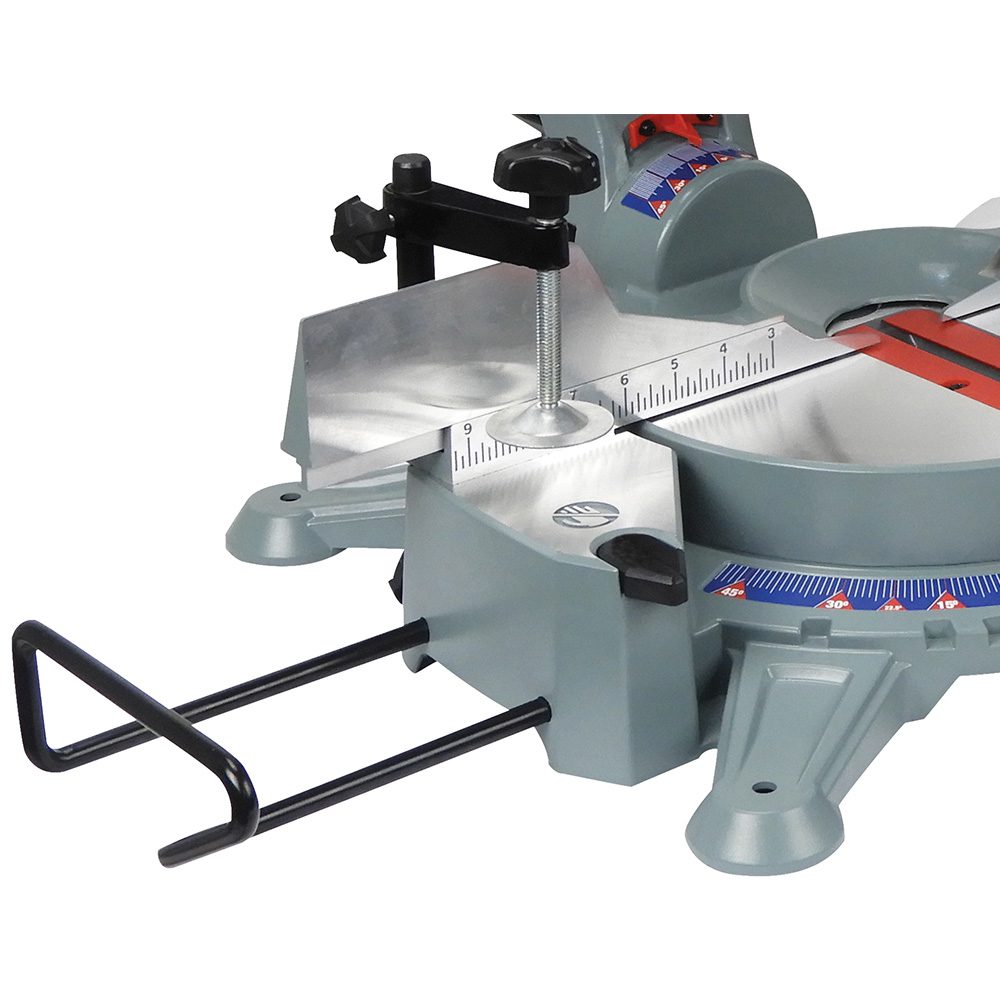

- Comes complete with a 2-position vertical hold-down vise, 2-position horizontal hold-down vise, retractable extension wings, dust bag, blade socket wrench, and 60-teeth carbide-tipped blade.
Technical data:
| Model | 8390N |
| Motor | 15 Amp. |
| Voltage | 120V, 1-phase, 60Hz |
| Diameter of arbor | 1″ |
| Blade speed | 4,000 RPM |
| Maximum cutting height | 4″ |
| Crosscut (H x W) | 4″ x 13 3/8″ |
| Miter 45⁰ right or left (H x W) | 1 1/2″ x 13 3/8″ |
| Bevel 45⁰ right (H x W) | 2 1/4″ x 13 3/8″ |
| Bevel 45⁰ left (H x W) | 4″ x 9 7/16″ |
| Compound 45⁰ right (H x W) | 1 1/2″ x 9 7/16″ |
| Compound 45⁰ left (H x W) | 2 1/4″ x 9 7/16″ |
| Assembled dimensions (L x W x H) | 35 3/4″ x 34″ x 29 1/2″ |
| Assembled weight | 55 lbs. |
| Packaged dimensions (L x W x H) | 38 7/8″ x 22 3/8″ x 20 7/8″ |
| Packaged weight | 58 lbs. |
