Product Description
Compound Miter Saws with Laser Guide System Demo Video
Features:
- Powerful 15 Amp., 5,000 RPM motor.
- Side trigger safety buttons prevent accidental starts.

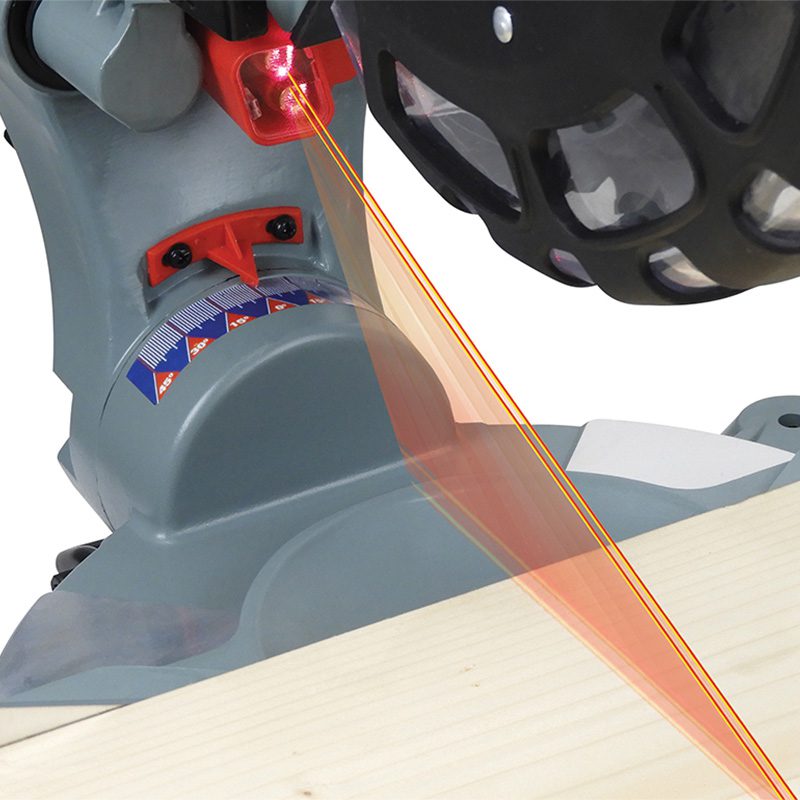

- Twin laser guide system indicates the cut line on both sides of the blade kerf for reliable cuts every time.

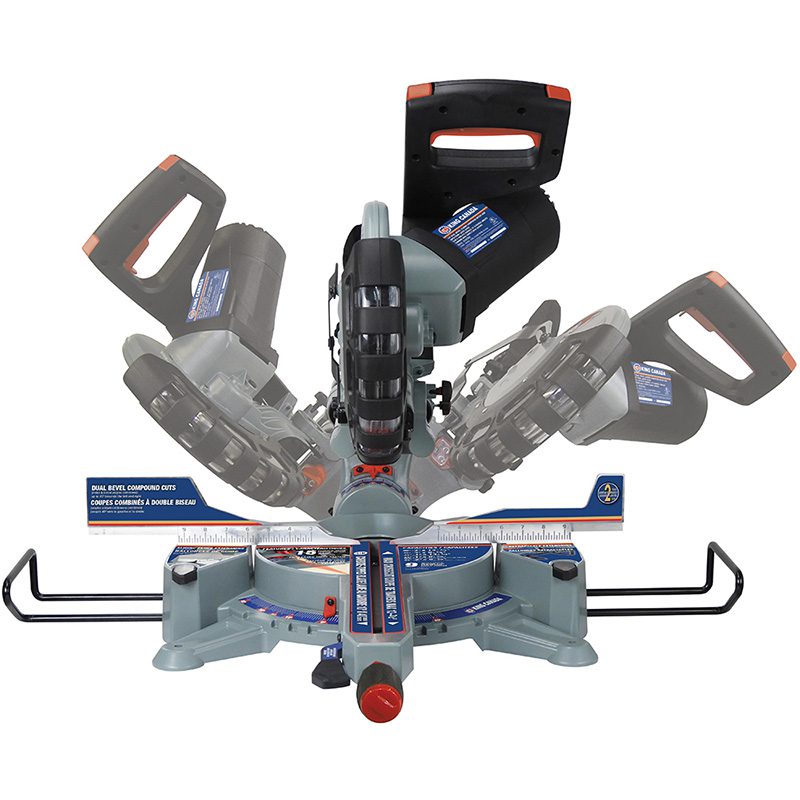

- Dual compound cuts (miter and bevel) up to 45⁰ right and left.
- 3″ x 13 3/4″ straight cut capacity at 90⁰.
- Electronic brake.
- Sturdy aluminum die cast construction.
- Rotating table has 9 positive stops at 0⁰, 15⁰, 22.5⁰, 30⁰, and 45⁰ right and left.
- Bevel positive stops at 90⁰ and 45⁰ right and left.

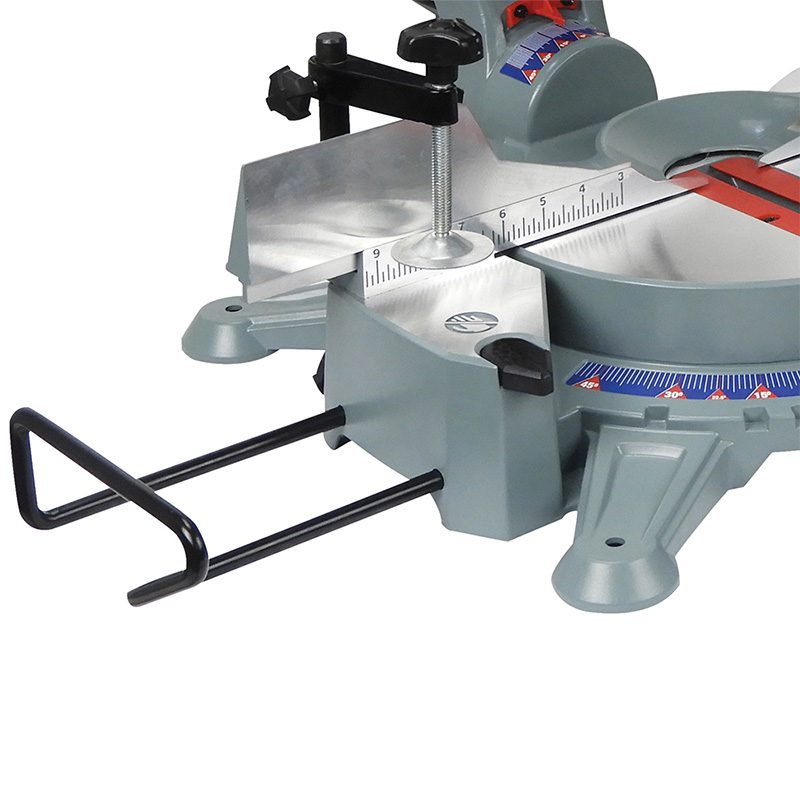

- Adjustable sliding fence extensions for extra support.
- Comes complete with a 2-position vertical hold-down vise, retractable extension wings, dust bag, blade socket wrench, and 40-teeth carbide-tipped blade.
Technical data:
| Model | 8385N |
| Motor | 15 Amp. |
| Voltage | 120V, 1-phase, 60Hz |
| Diameter of arbor | 5/8″ |
| Blade speed | 5,000 RPM |
| Maximum cutting height | 3 1/2″ |
| Crosscut (H x W) | 3″ x 13 3/4″ |
| Miter 45⁰ right or left (H x W) | 3″ x 9 3/8″ |
| Bevel 45⁰ right (H x W) | 1″ x 13 3/4″ |
| Bevel 45⁰ left (H x W) | 2″ x 13 3/4″ |
| Compound 45⁰ right (H x W) | 1″ x 9 3/8″ |
| Compound 45⁰ left (H x W) | 2″ x 9 3/8″ |
| Assembled dimensions (L x W x H) | 35 3/4″ x 41 1/4″ x 25″ |
| Assembled weight | 40 lbs. |
| Packaged dimensions (L x W x H) | 35 1/2″ x 22″ x 14 3/4″ |
| Packaged weight | 44 lbs. |
Please Contact Us at our Machinery Department for further inquiries.
