EQGX752H

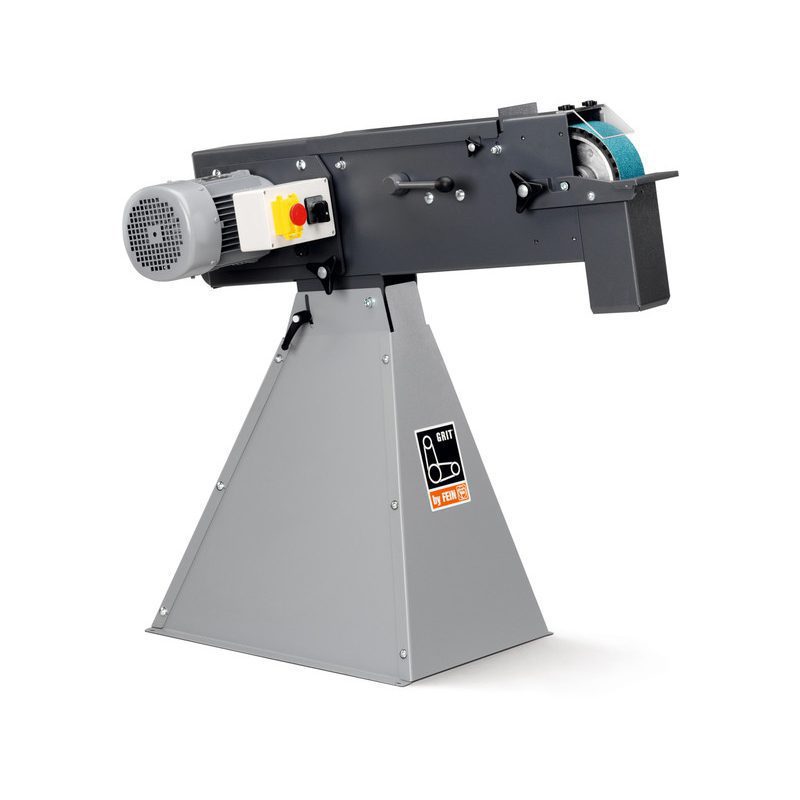

EQGX752H GRIT ABRASIVE NOTCHING SYSTEM – 3″ BELT GRINDER (TWO-SPEED)

Share this product

Check availability near you

| Out of stock

| Out of stock

| Out of stock

N/A

165.000 lbs

SKU: EQGX752H Category:

Product Description

Powerful belt grinder (dual-speed version) – the core of the modular GRIT GX series. Also usable as a full-fledged, stand-alone belt grinder.


GRIT GX 75 2H + GXR + GXE + GXC + GXW Abrasive Notching System Installation & Demo Video
GRIT GX 75 2H + GXR + GXC + GXW Abrasive Notching System Demo Video
GRIT GX 75 2H + GXR + GXE Abrasive Notching System Demo Video
GRIT GX 75 2H + GXC + GXW Abrasive Notching System Demo Video 1


GRIT GX 75 2H + GXC + GXW Abrasive Notching System Demo Video 2

The EQGX752H forms the foundation of the GRIT GX system. A high-performance belt grinding machine that you can rely on in professional use: robustly-built, easy-to-install, and equipped with everything to make work and operation easier. The appropriate add-on modules convert your base machine into a radius or cylindrical grinding machine.
Specifications:
  • High-performance: Tough AC motor provides grinding with constant speed.
  • Ideal speeds for working with metal and stainless steel: 1,800/3,600 RPM.
  • Convenient: With adjustable working height 30 5/16″-39 3/8″ (77-100cm) for a natural stance.
  • Safe: Floor anchoring and protective equipment offer maximum safety.
  • Ergonomic: Ergonomic, field-tested design for easy operation.
  • Practical: Swarf container, removable without tools.
  • Includes: 1 grinding belt 3″ x 78 3/4″ (75 x 2,000mm), 36 grit type R.
Technical data:
Model EQGX752H
Use The universal belt grinder with modular expansion capability for trade use. Two speeds, ideal for processing stainless steel in small production runs.
Power 1.5/2 kW (2/2.5 HP)
Voltage CAN 575V 2.6/3.5 amps or 220V 6.8/9.1 amps, 3-Phase
No-load speed 1,800/3,600 RPM
Belt dimensions 3″ x 78 3/4″ (75 x 2,000mm)
Weight 165 lbs. (75kg)
Benefits:
  • Rapid material removal
  • Precise operation using the patented belt tensioning system
  • Maximum cost-effectiveness by saving on special machines
  • Full work capability, even without add-on modules
Additional Information:
Versatile
  • The powerful motor makes the EQGX752H belt grinding machine highly effective. This guarantees rapid material removal. The EQGX752H is especially low in vibration and its patented belt tensioning system makes precise work easier.
Optimal flat material work
  • Grinding flat material is a basic capability of the GRIT series. A large 3″ x 16 1/2″ (75 x 420mm) grinding area is standard on the EQGX752H machine, as are the height-adjustable grinding table and the easy belt alignment.
