SSGF12GM16S.

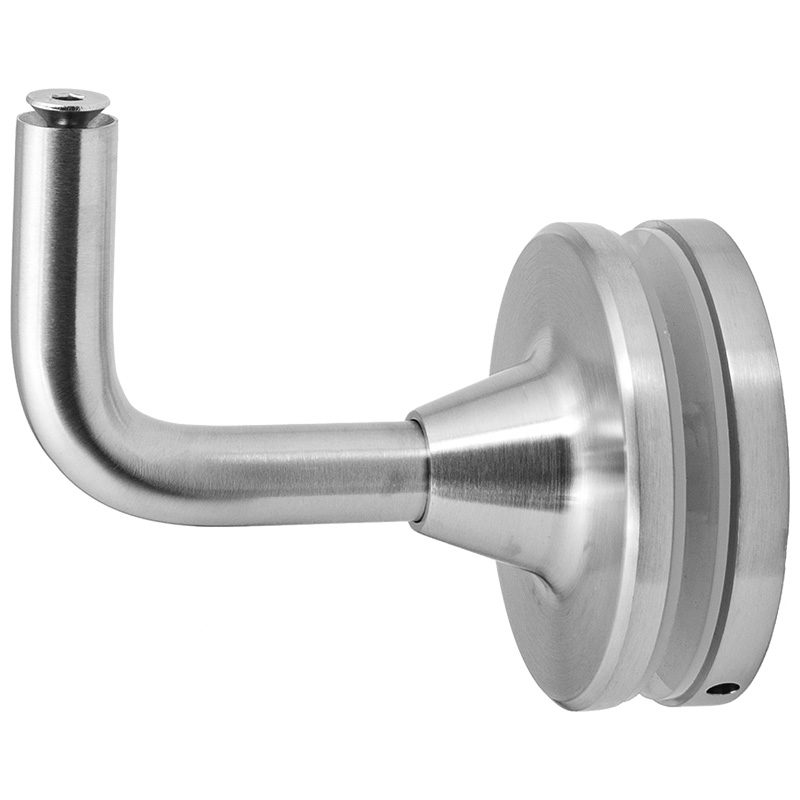

RD6 SERIES – STAINLESS STEEL OFF-THE-GLASS HANDRAIL BRACKET 3″ x 2″

Share this product

Check availability near you

Loading...

| Out of stock

Clear selection
SKU: SSGF12GM16S. Category:

Product Description

Features:

  • Fully engineered for the National Building Code of Canada and Ontario Building Code.
  • Off-the-glass handrail bracket.
  • SS316 Satin finish.
  • Rod is 14mm in dia. and has M6 threading.
  • 14mm rod held by 68mm diameter robust plate provides heavy duty support for all types of handrails.
  • Large back plate fully supports installation between glass panels.
  • Matches our adjustable length off-the-glass brackets: SSGF13GM16S & SSGF14GM16S.

Each off-the-glass bracket comes with a Handrail Attachment Plate. Please choose your shape and size option above. If you have any questions, please do not hesitate to Contact Us.

Download our Drawing here.

Additional Information

Weight 1.26 lbs
Series

RD6
