Product Description

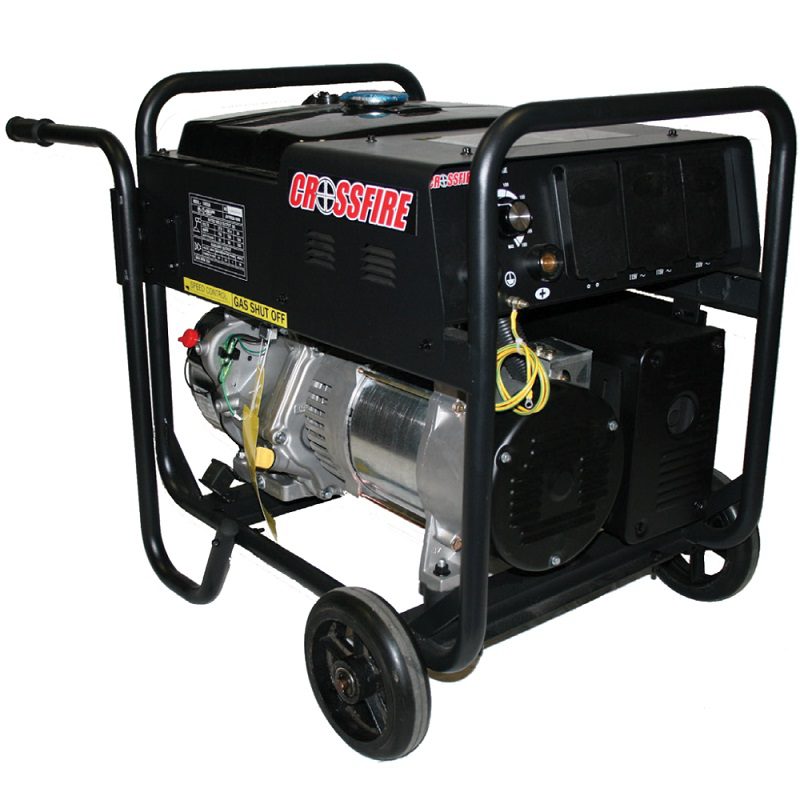

The Crossfire CUB 190 assures reliable power where and when you need it. The CUB 190’s small footprint and compact design requires only minimum truck bed or floor space. The CUB 190 is powered by the rugged,field-proven Kohler engine noted for its easy starts and long life dependability. DC weld output is virtually ripple free, resulting in a super smooth weld transfer and outstanding final bead appearance. Enjoy superior weld performance plus enough on board auxiliary power to operate lights, power hand tools, grinders, etc. Choose the Crossfire CUB 190 for your next welder/generator and gain the edge you need to get the job done right.
Features:
- 190 Amp DC Gas Welder
- Gas Engine 414 CC
- 14 hp @ 3600 RPM
- Single cylinder/4 stroke
- Engine Kohler 14 HP Commander Pro
- 18.9 litre gas tank (5 Gallon)
- 1.36 litre oil (1.2 Quart)
- Recoil start
- Fuel Gauge
- Covered Receptacles
- 4 X 120 plugs 16 AMP
- 1 X 240 plugs 16 AMP
- 2200 watts rated
- 2500 watts surged
| Output | Part Number | Range | Engine | Dimensions | Weight |
| Rated DC Amps 55-190 @ 27 V 30% Duty Cycle | CF-99420 | 55-190 DC Amps | 14 HP @ 3600 RPM |
H. 24.0” (605 mm)
W. 20.0” (510 mm)
L. 27.5” (700 mm)
|
Net: 220 lb (100kg) |
