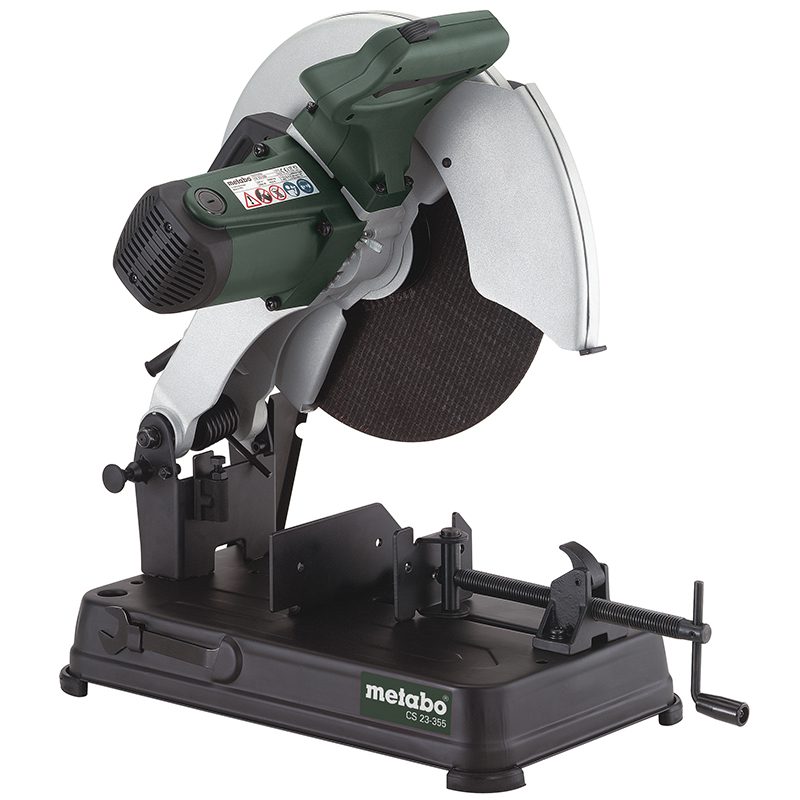

Product Description
Features:
- For single phase alternating current
- Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminum and other non-ferrous metals
- Motor and gear with ball bearing for high loads
- Spindle lock for easy disc change
- Quick clamping device with variable mitre conversion from -15° up to 45°
- Easy to transport due to built-in handle and locking device
- High safety thanks to swivelling cutting guard
- Storage for double-ended wrench at the machine table
- Safe working thanks to adjustable spark guide plate
- Adjustable cutting depth limiter
Technical data:
| Model | 602335420 |
| Grinding wheels (Ø x bore) | 355 x 25.4mm / 14″ x 1″ |
| Torque | 18 Nm / 160 in-lbs. |
| No-load speed | 4100/min |
| Rated input power | 1700 W |
| Cutting capacity steel bars | 65mm / 2 1/2″ |
| Cutting capacity tubes | 125mm / 5″ |
| Cutting capacity steel sections | 115 x 130mm / 4 1/2: x 5 1/8″ |
| Maximum opening of vice jaws | 238mm / 9 3/8″ |
| Dimensions of the base plate | 468 x 282mm / 18 7/16″ x 11 3/32″ |
| Transport height | 400mm / 15 3/4″ |
| Weight | 16.9kg / 37 lbs. |
| Cable length | 2.5m / 8 ft. |
| Noise Emission | |
| Sound Pressure Level | 91 dB(A) |
| Sound power level (LwA) | 104 dB(A) |
| Uncertainty of Measurement K | 3 dB(A) |
