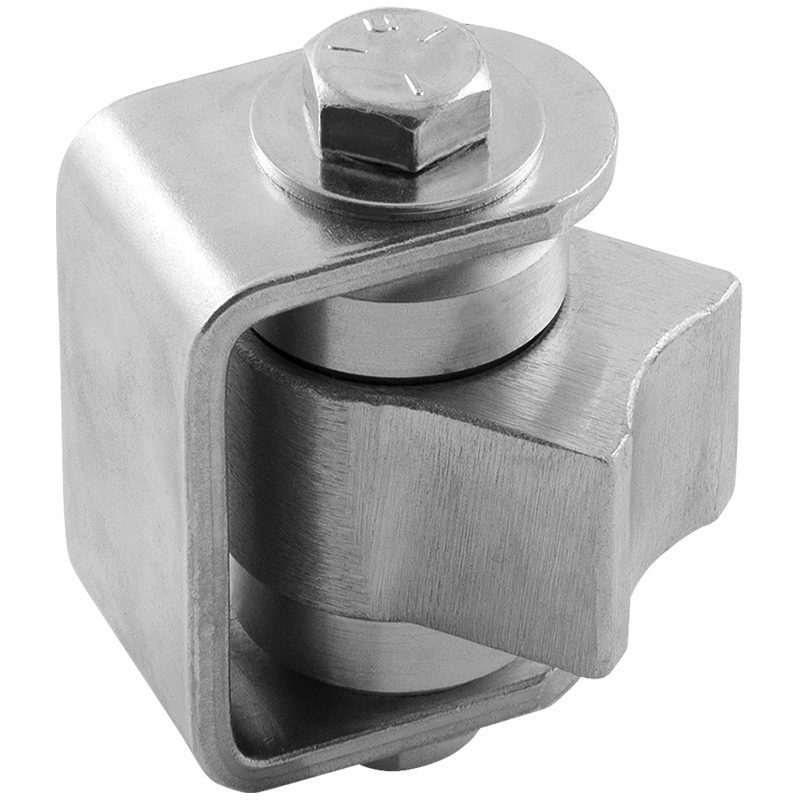

Product Description
Features:
- CNC machined to the tightest tolerances in the industry.
- Unique bushing design produces near frictionless movement.
- Two sealed maintenance free bearings (no greasing).
- Adjustable yoke for perfect installations.
- Ideal for both flat and round post installations.
- Load rating per gate: 2,000 lbs. (900 kg).
- Maximum gate weight: 1,100 lbs. (500 kg).
Technical Data:
| Product Code | Gap Variance | Fixing Method | Finish | # of Sealed Bearings | Yoke Material | Body Material | Height | Weight |
| CI3000 | 2.4″-2.9″ (61-74mm) |
Weld | Zinc | 2 | Steel | Steel | 3.8″ (97mm) |
2.5 lbs. (1.1 kg) |
Click here to download the Shut It Gate Hardware hinges flyer.
Click here to download the hinge drawing.
