Product Description
Features:
- Powerful 4.5 HP motor.
- Low 52 RPM blade speed is ideal for cutting ferrous metals.
- Industrial quality machine with the ability, power, and precision to cut almost anything.
- Mitering head pivots to the right or left positive stops at 45˚ and 90˚.
- Quick action clamping vice secures workpiece.
- Control handle with integrated safety trigger.
- Magnetic safety switch with overload protection.
- Comes with side roller, anti-splash guards, and workshop assembly (12″ blade not included).
Technical data:
| Model | KC-315CS |
| Capacity at 90° | ● 2 3/8″ / ○ 4″ / ■ 3 1/4″ x 3 1/4″ |
| Capacity at 45° | ● 2″ / ○ 3 1/2″ / ■ 3″ x 3″ |
| Spindle Speed | 52 RPM |
| Maximum Vise Opening | 4 3/4″ |

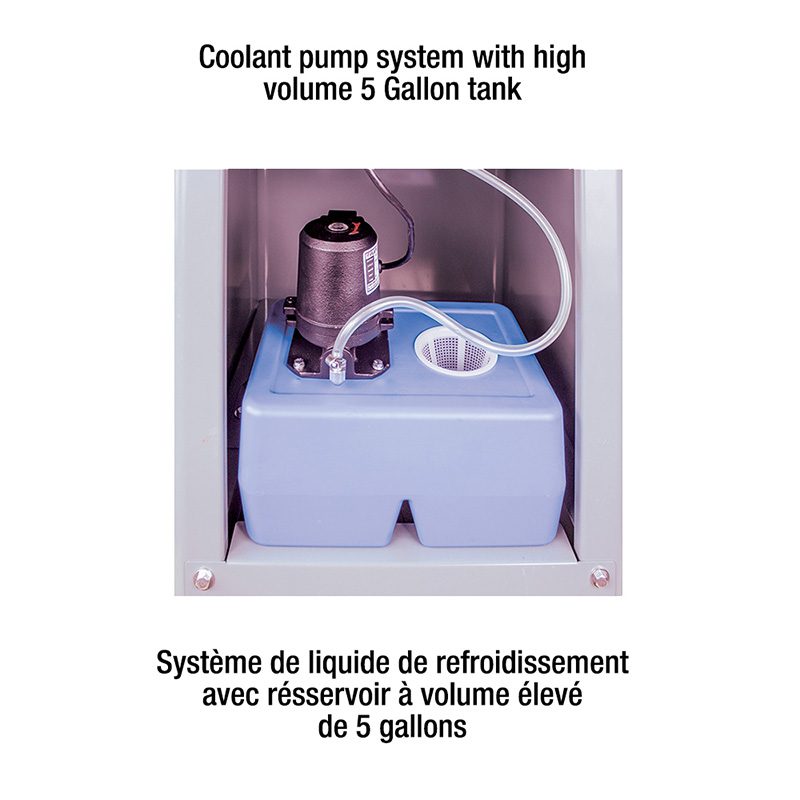

| Coolant Tank | 5 Gallon |
| Coolant Pump | 1/8 HP |
| Motor | 4.5 HP, 16 Amp. |
| Voltage | 220V, 1-Phase, 60 Hz |
| Assembled Dimensions (L x W x H) / Weight | 40″ x 39″ x 72″ / 385 lbs. |
