Product Description
Variable Speed Drill Press Demo Video
Features:
- Powerful 3/4 HP, 8.6 Amp. motor.

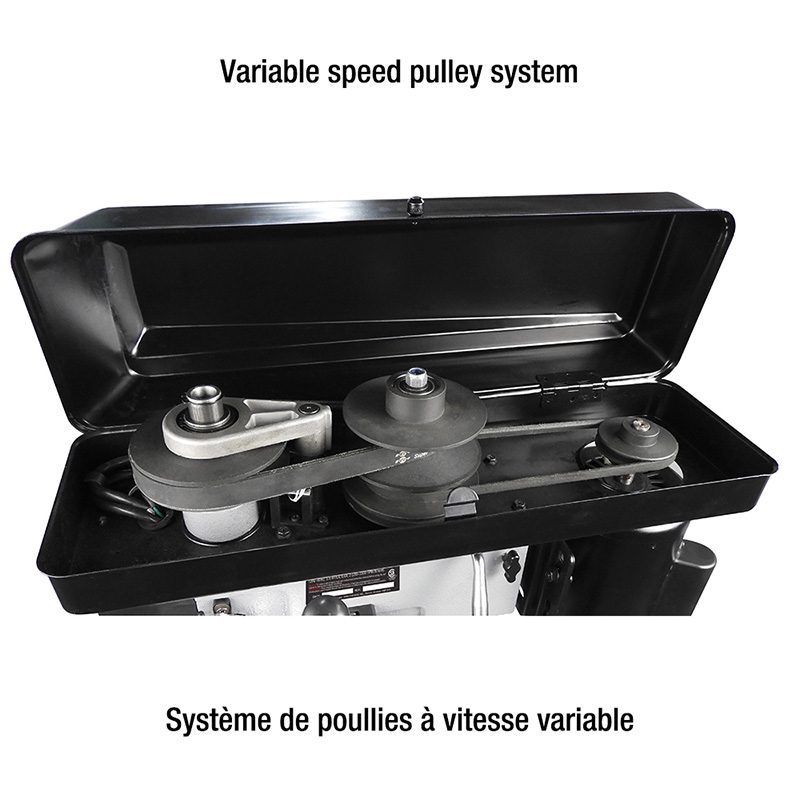

- Mechanical variable speed system with 2 speed ranges, 280 – 1,100 RPM for metal and 900 – 3,300 RPM for wood.
- 4″ stroke capacity allows this drill press to drill workpieces up to 4″ thick.

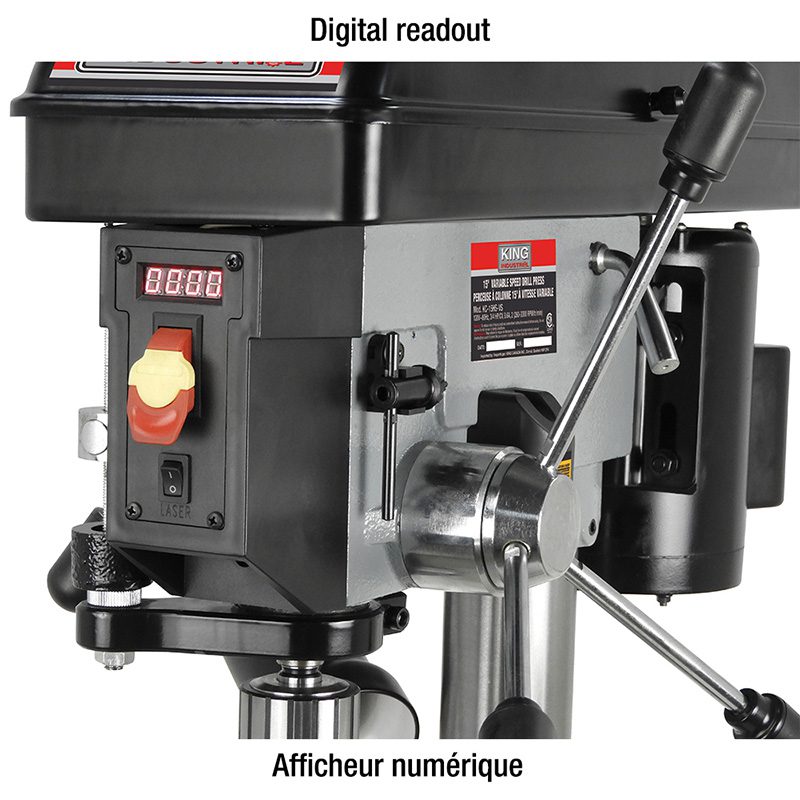

- Digital readout for precise spindle speed.
- Dual intersecting adjustable laser guides.
- Accepts up to 5/8″ shanked drill bits.
- Positive depth stop for quick and easy adjustment of the spindle travel.
- Flexible work light illuminates the work area maximum visibility.
- Comes with 5/8″ drill chuck, chuck key, onboard chuck key storage, and adjustment hex. keys.
Technical data:
| Model | KC-15HS-VS |
| Capacity | 5/8″ |
| Chuck Size | 5/8″ |
| Swing | 15″ |
| Max. Distance Chuck to Column | 7 1/2″ |
| Max. Distance Chuck to Table | 25″ |
| Stroke | 4″ |
| Table Size | 12″ x 12″ |
| Spindle Taper | MT #2 |
| Variable Speeds | 2 (280 – 1,100 / 900 – 3,300) RPM |
| Table T-slots | 9/16″ |
| Motor / Voltage | 8.6 Amp. @ 120V, 1-Phase, 60 Hz |
| Assembled Dimensions (L x W x H) / Weight | 14 3/4″ x 25″ x 64″ / 155 lbs. |
| Packaged Dimensions (L x W x H) / Weight | 55 1/2″ x 22 1/2″ x 11 1/4″ / 160 lbs. |
Please Contact Us at our Machinery Department for further inquiries.
